Daylight Monitoring Dimmable Motion Sensor RF Wireless Grouping Tunable White

Name: Daylight Monitoring Dimmable Motion Sensor RF Wireless Grouping Tunable White
Brand: Hynall
Price: 1 USD

Wholesale Daylight Monitoring Dimmable Motion Sensor RF Wireless Grouping Tunable White from china suppliers

Brand Name : Hynall

Model Number : HNS117RF

Certification : RED, FCC, RoHS, ETL

Place of Origin : Shenzhen, China

MOQ : 300pcs

Price : To be negotiated

Payment Terms : T/T

Supply Ability : 30,000pcs / month

Delivery Time : 3~4 weeks for bulk orders

Packaging Details : Bubble bag + carton. (color box or blister package also available on request)

Input voltage : Standard 12V DC, Customized version 24V DC

RF frequency : Two options 915MHz / 868MHz

RF transmission distance : in open area max. 50m

IP rating : IP20

Usage : car parking, hotel, corridor etc.

Product name : dimmable motion sensor

Warranty : 5 years

Size : 73.1*33*15.6mm

Contact Now

Model name: HNS117RF Low voltage dimmable motion sensor

This model is a multiple-function sensor, and 3 in 1 including 5.8G microwave motion sensor, daylight sensor and tunable white CCT adjustment.

Advantage:
1. Tunable white, RF wireless grouping, 0-10v dimming and daylight monitoring
2. RF wireless grouping setting: Easy setting by DIP switch; Intelligent grouping by RC remote control
3. CCT adjustment: DIP switch setting, and warm, White, Cool three options
4. Customized service: Yes

Product information:

Input voltage:12V DC ; Input current: more than 50mA

Detection range for ceiling mounting: max. 12m in diameter; Mounting height: Up to 6m

RF transmission distance : in open area max. 50m; Output: 0-10v dimming

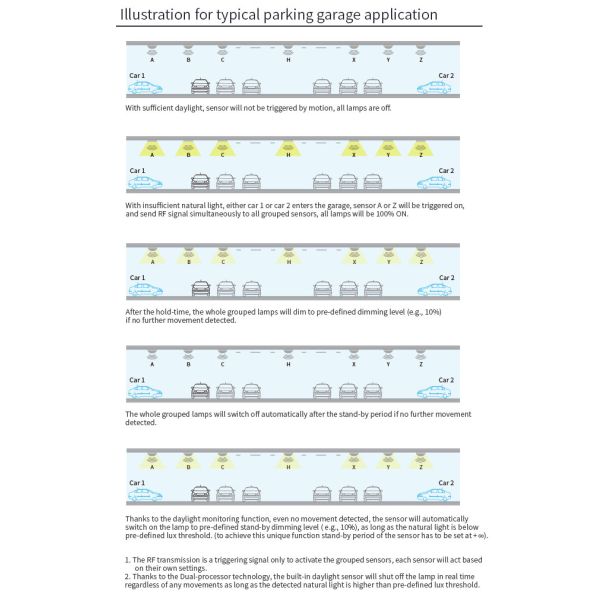

Ideal for retrofit project / parking garage / staircase / corridor applications

Color temperature adjustment: Warm, White, Cool by DIP switch setting

IP rating: IP20
